Central Analysis Service of the UPV/EHU. Bizkaia Unit

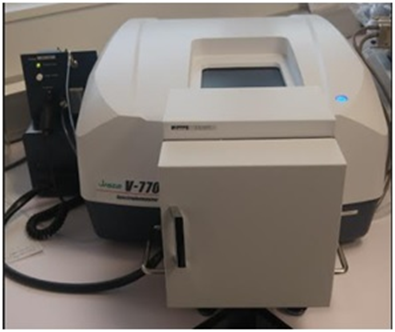

Equipment: UV-vis-NIR Spectrophotometer

Brand: JAS.CO

Model: V770

__________________________________________________________________________________________________________________________________________________________________________________________________

Description:

Measuring spectrophotometer with a fully symmetrical double-beam optical system and a Czerny-Turner monochromator. Wavelength range: 190-3200 nm; Light source: Deuterium and halogen lamp. Detectors: PMT (UV/Vis) and Peltier-controlled PbS (NIR).

__________________________________________________________________________________________________________________________________________________________________________________________________

Applications:

Due to the large number of accessories, the following measurements can be performed:

• UV-vis measurement of solutions for concentration determination or kinetic studies.
• One-drop or long-pass cuvette measurements
• Microcuvette measurements
• Peltier system for thermostated measurements
• Integrating sphere for solid DR-UV-vis-NIR measurements (150 mm)
• Portable integrating sphere for external DR-UV-vis-NIR measurements
• DR-UV-vis-NIR measurements on films and/or other materials/supports
• Software for post-processing of data: PCS, PLS, PLSO

__________________________________________________________________________________________________________________________________________________________________________________________________

Responsible:

• Luis Bartolomé
• Location: Martina Casiano Building, Laboratory 1B13
